Key Takeaways
- Test the slab before buying flooring, not after. A plastic-sheet test, a calcium chloride kit, or an in-situ relative humidity probe tells you what a floor will actually be sitting on, which matters more than any material's marketing claim.
- A raised subfloor panel with a dimpled air gap, the DRICORE-style system, does something a flat vapor barrier can't: it lets moisture that reaches the slab evaporate into that gap instead of pressing straight up into your flooring.
- The Ontario Building Code's dampproofing article for floors-on-ground (9.13.2.7) sets a 0.15 mm polyethylene minimum with 100 mm lapped joints below the floor. That's a floor, not a ceiling. Most manufacturers of floating floors specify heavier film and continuous taping at every seam.
- Once the floor is in, the job isn't done. CMHC and Health Canada both put the workable indoor humidity band at 30 to 50 percent, and a basement drifts toward the top of that range faster than any other room in the house.
A basement floor gets tested against different moisture questions than a floor on the level above it. Not "does it look wet," but "how much ambient moisture is moving through this slab right now, and does the flooring assembly I'm about to install actually accommodate that." Skip that question and even a good-looking floor can trap moisture where nobody can see it, until a musty smell or a soft spot in the LVP tells you it's been happening for months.
This post is the testing-and-assembly companion to our comparison of below-grade flooring materials, which covers how vinyl plank, engineered hardwood, tile, and carpet tile perform against each other once the moisture question is settled. Here, we go one layer deeper: how to actually find out what your slab is doing, what sits between the concrete and the finished floor, and the two options, subfloor panels and epoxy, that decide how a damp or marginal basement gets flooring installed at all.
If you haven't already dealt with an active water problem, seepage through a wall, a rising water table, standing water at the cove joint, none of what follows applies yet. Read basement waterproofing before you finish first. Everything below assumes the water problem is solved and what's left is ordinary below-grade dampness: a slab in contact with soil, running cooler than the room above it, carrying moisture upward by capillary action even on a good day.
Step 1: Test the slab before you buy anything
Concrete looks dry long before it is dry, and a slab that passes a look-and-touch check can still be moving enough moisture to fail a flooring adhesive or swell an OSB subfloor panel. Three tests, in order of cost and precision:
The plastic sheet test. Tape a roughly 60 cm square of clear plastic sheeting to the slab, sealed on all four edges, and leave it 24 to 48 hours. Condensation under the plastic, or a darkened patch on the concrete when you peel it back, means there's more moisture movement than the surface suggested. It's a free, rough screen, not a number you can act on precisely, but it's worth doing before you spend on anything else.
Calcium chloride testing (ASTM F1869). A pre-weighed dish of calcium chloride sits under a sealed dome on the slab for 60 to 72 hours, and the weight gain converts to a moisture vapor emission rate in pounds per 1,000 square feet per 24 hours. Most flooring adhesive and epoxy manufacturers cap what they'll warranty at 3 to 5 lbs; above that, plan on a moisture mitigation step before anything goes down, not after.
In-situ relative humidity testing (ASTM F2170). Small holes are drilled into the slab and RH probes read the humidity inside the concrete itself, not just at the surface. It's considered the more reliable of the two instrumented tests, since a slab's surface can read dry while the body of the concrete is still holding moisture that will migrate up over the following weeks. Readings above roughly 75 percent RH are the same trigger point as the calcium chloride threshold, calling for a vapor barrier or mitigation coating before the finished floor.
None of this is optional if you're installing engineered hardwood, laminate, or an epoxy coating, all three depend on adhesive bond or a moisture-sensitive core. It matters less for fully floating LVP over a raised subfloor panel, since that assembly is designed to tolerate slab moisture the flooring itself never contacts. That's exactly why the next two sections matter more than the material choice itself.
Step 2: Get the vapor barrier right, and know what code wants
Ontario's building code sets a real floor here, but it's a lower bar than most flooring manufacturers ask for. Article 9.13.2.7, Dampproofing of Floors-on-Ground, requires that where dampproofing is installed below the floor, it be polyethylene not less than 0.15 mm thick (or Type S roll roofing), with joints lapped not less than 100 mm. Where a separate floor sits over the slab and the dampproofing goes on top instead, the code accepts two mopped-on coats of bitumen, polyethylene as thin as 0.05 mm, or an equivalent material. The general vapour barrier material standard, Article 9.25.4.2, sets permeance at not greater than 60 ng/(Pa·s·m²) and requires polyethylene sheet to meet CAN/CGSB-51.34-M.
That's code minimum, not what most floating-floor manufacturers ask you to build to. A typical LVP or laminate warranty over a below-grade slab wants 6-mil polyethylene, continuous, taped at every seam rather than just lapped, run up the foundation wall a few centimetres behind the baseboard. Code permits a lighter, lapped assembly; the manufacturer's own installation instructions are usually the tighter number that actually protects your warranty.
There's a wrinkle worth knowing before you buy a roll of poly, though: it isn't the default answer everywhere. Where a raised subfloor panel system is going down, the panel manufacturer typically advises against adding a separate polyethylene sheet under the panel at all, because a sealed poly layer traps moisture at the concrete instead of letting it evaporate, which is the opposite of what the panel's own air gap is built to do. Vapor barrier placement depends on which assembly you're using above it, not a single rule for every basement floor.
Step 3: Raised subfloor panels, and why the air gap works
This is the piece that gets skipped most often on a basement flooring job, and it's the single detail that most changes how well the floor performs over a slab that's damp but not actively leaking.
A raised subfloor panel, the category DRICORE popularized, is a two-layer product: a rigid top layer, usually OSB, bonded to a high-density polyethylene base with a dimpled pattern moulded into it. Those dimples lift the panel roughly 16 mm (5/8 in) off the concrete, creating a continuous air gap under the entire floor. Moisture that reaches the top of the slab, from capillary action, from a summer humidity swing, from a basement that's cooler than the air above it, evaporates into that gap and moves laterally to the room's perimeter instead of pressing straight up into whatever's fastened to the panel above (DRICORE product specifications, retrieved 2026-09-04). A flat vapor barrier sheet can't do that; it stops bulk water but gives ambient moisture nowhere to go except sideways under a sealed surface, which is part of why manufacturers steer installers away from stacking a poly sheet under the panel.
Insulated versions of the same idea add a layer of expanded polystyrene foam between the OSB and the dimpled base, trading a bit of the air gap's evaporation area for R-value, R-2.7 on the mid-tier product, R-4.1 on the top-tier one. That trade is worth making in a basement being finished as living space where floor comfort matters; it's less necessary under a mechanical room or storage area where nobody's standing on it barefoot.
Where ceiling height is too tight to give up even 16 mm, and it sometimes is on an older KWC-area basement with a low slab-to-joist dimension, taped 6-mil polyethylene is the fallback most floating-floor manufacturers will still warranty over. It's a real compromise, though: you're back to ambient moisture having nowhere to evaporate, which is the reason a raised panel is the better-performing choice everywhere ceiling height allows it.
Step 4: Epoxy and moisture-mitigating coatings, and when to use them
A basement mechanical room, laundry area, or workshop doesn't need the comfort a floating floor gives a family room, and epoxy or a polyaspartic coating applied directly to the slab is a reasonable answer there, provided the moisture testing from Step 1 comes back clean. Above roughly 3 lbs MVER or 75 percent internal RH, a standard epoxy system risks adhesion failure, bubbling, or delamination as trapped vapor pushes up against the cured coating from below. A moisture-mitigating primer, a two-part epoxy formulated specifically to bridge that range, exists for slabs that test above those thresholds, but it's a different product at a different price point than a standard decorative coating, and it needs to be specified based on the actual test number, not a guess.
This is the flooring category where skipping Step 1 costs the most. An epoxy floor that delaminates six months after cure is a full grind-and-recoat job, not a touch-up, and the failure traces straight back to a moisture test that was never run.
What this means for the flooring you actually choose
The detailed comparison of vinyl plank, engineered hardwood, tile, and carpet tile lives in our below-grade flooring materials guide, so we won't repeat that table here. What changes once you've read Steps 1 through 4 is which of those materials makes sense over which assembly:

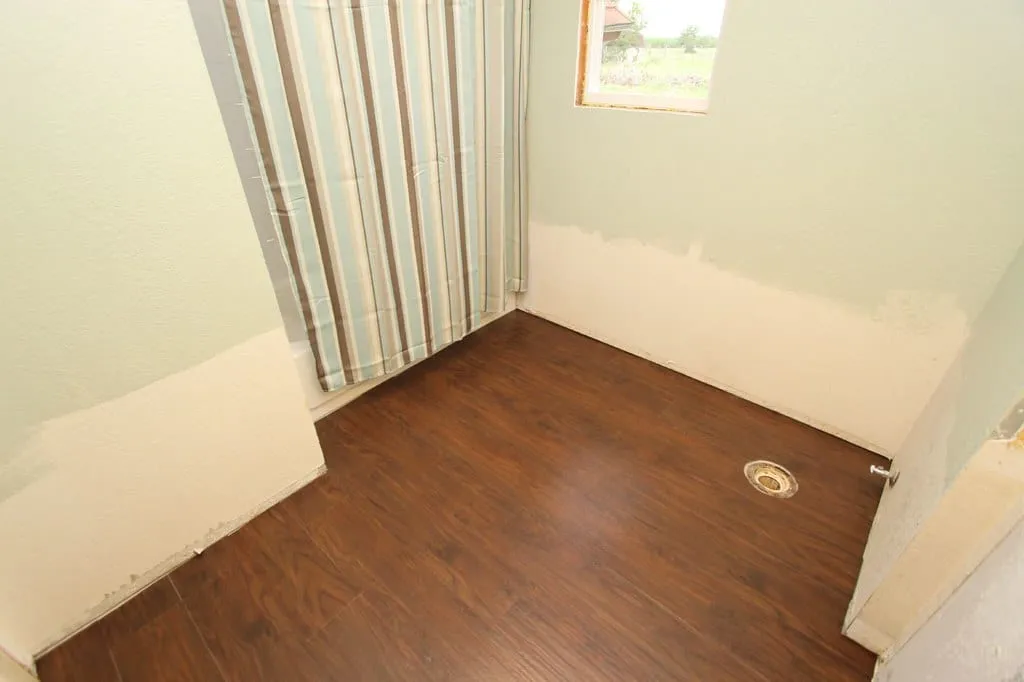

- LVP or rigid core over a raised subfloor panel is the combination we install most often in a finished basement, because the panel's air gap does the moisture management and the vinyl itself doesn't care about ambient humidity either way.
- Below-grade-rated engineered hardwood still needs a passing moisture test underneath it, since its core, even the moisture-resistant version, isn't designed to sit on a slab that failed a calcium chloride test.

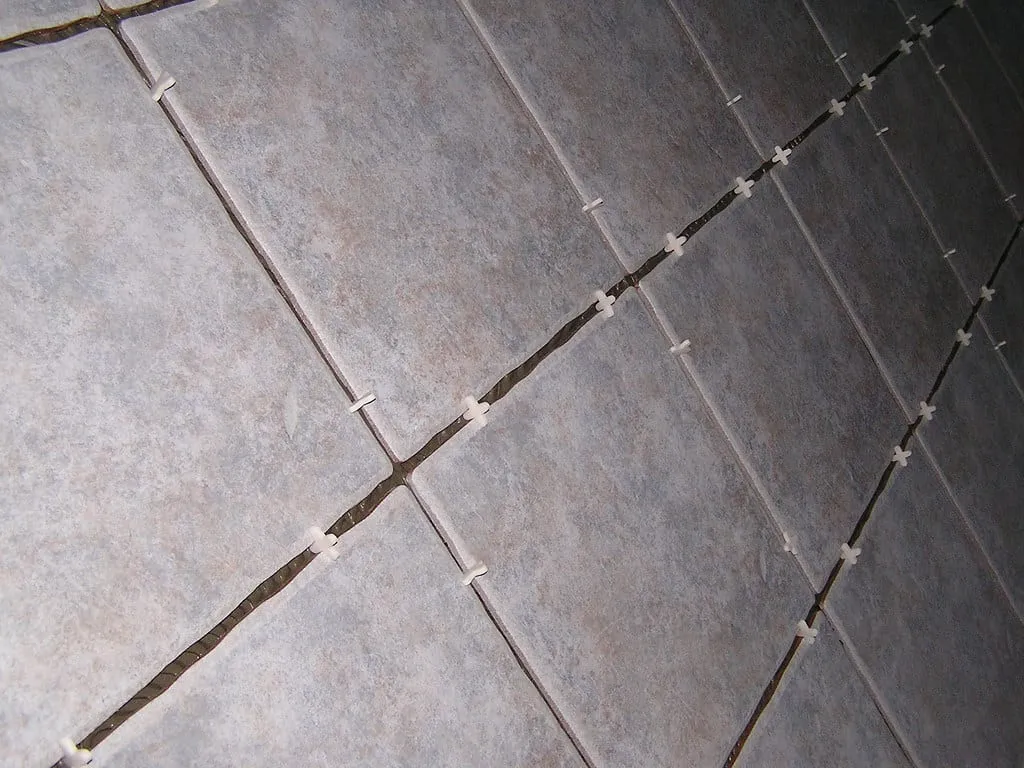

- Porcelain or ceramic tile tolerates ambient moisture on its own, but the thinset bonding it to the slab doesn't; a moisture reading above threshold calls for an uncoupling membrane between slab and tile, not just a good mortar.
- Epoxy and polyaspartic coatings go straight onto tested concrete, no subfloor panel involved, which is exactly why the test result matters more here than anywhere else on this list.
We spec a raised panel and LVP by default on flooring installation in Kitchener basements with an older poured slab that still sweats through a July heat wave, since the air gap handles exactly that kind of intermittent ambient moisture without asking the homeowner to run a dehumidifier around the clock. The same combination shows up constantly on flooring in Cambridge, where a lot of the older housing stock shares the same slab-on-grade construction and the same seasonal humidity swing. And because flooring is usually one of the last steps in a larger project, the moisture testing and subfloor decision here typically get made partway through a basement renovation in Waterloo, once the wall waterproofing and framing are already settled and the slab itself is the only unresolved variable left.

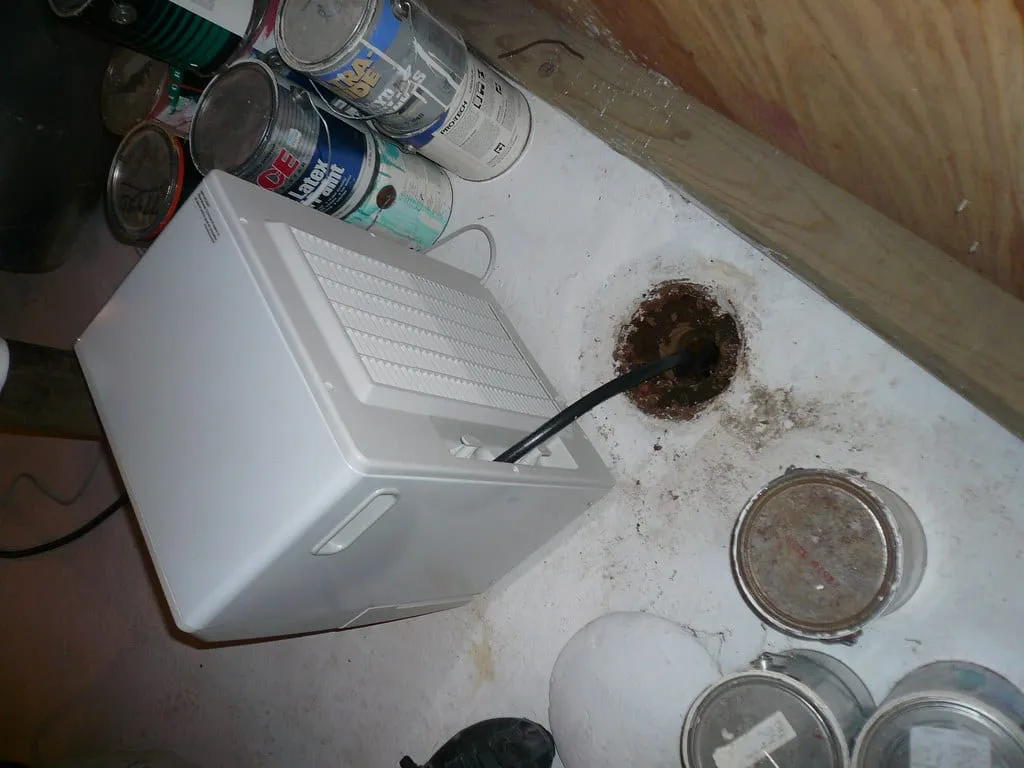

Keeping the floor dry after it's installed
A correctly tested, correctly assembled basement floor still depends on the room around it staying within a reasonable humidity range. Health Canada recommends keeping indoor relative humidity between 30 and 50 percent, both for comfort and because humidity above that range starts contributing to condensation and mould growth (Health Canada, Mould, retrieved 2026-09-04). CMHC's own basement moisture guidance lands in the same band. A basement runs closer to that upper limit than any other room in the house by default, since it's the coolest space with the least airflow, which is exactly why a dehumidifier sized to the square footage, not a small portable unit bought for a bedroom, is worth budgeting into the project rather than adding later as an afterthought.
Our guide to preventing mold and moisture in a finished basement covers that humidity-management side in more depth, dehumidifier sizing, where condensation actually forms inside a finished wall, and what a rising reading on a cheap hygrometer is actually telling you.
Frequently asked questions
Do I need to test every basement slab, even if it looks and feels dry?
Yes, if you're installing anything moisture-sensitive: engineered hardwood, laminate, epoxy, or an adhesive-bonded product. A slab can read dry to the touch and still fail a calcium chloride or RH test, because both measure moisture moving up through the concrete's depth, not just what's sitting on the surface the day you check. Floating LVP over a raised subfloor panel is more forgiving, but even there, a plastic sheet test is a cheap way to know what you're building over.
Can I put a vapor barrier under a DRICORE-style subfloor panel for extra protection?
Most manufacturers advise against it. The panel's dimpled base is designed to let moisture evaporate into the air gap underneath; sealing that gap with a separate poly sheet traps moisture against the concrete instead, working against the system rather than adding to it. Follow the specific panel manufacturer's installation instructions rather than assuming more layers is automatically safer.
What relative humidity reading means I need a moisture mitigation coating before flooring goes down?
Above roughly 75 percent internal RH by ASTM F2170, or above 3 to 5 lbs MVER by ASTM F1869 (check the specific flooring or adhesive manufacturer's stated threshold), plan on a moisture-mitigating primer or coating before the finished floor goes on, not a standard product installed and hoped for.
Is a dehumidifier still necessary if the flooring itself is fully waterproof?
Yes. Waterproof flooring protects the flooring, not the room. Humidity above 50 to 60 percent supports mould growth on anything else in the space, drywall, baseboards, stored items, regardless of what's underfoot, and a basement's cooler air and lower airflow push it toward that range faster than any room upstairs.
Does this apply the same way to a basement bathroom or laundry room floor?
The moisture testing and vapor barrier logic is the same, but the material choice usually shifts toward tile or epoxy in those specific rooms, since they're the areas where actual water, not just ambient humidity, can reach the floor directly. See our below-grade flooring materials guide for how that changes the comparison room by room.
Where this fits in a bigger flooring project
If a basement is one room in a wider flooring plan for the house, our flooring and interior painting guide for Ontario homes is the starting point for how material choices, budget, and sequencing play out across the whole project. For the two comparisons that come up most once the basement's moisture question is settled: hardwood vs. laminate vs. vinyl covers the upstairs equivalent of this decision, where moisture isn't the deciding factor the way it is below grade, and flooring cost per square foot breaks down what a raised subfloor panel or a moisture-mitigating primer actually adds to a basement job's price versus a straightforward main-floor install. If the basement in question is also where the dog sleeps, pet-friendly flooring options is worth reading before you commit to a wear layer.
