Key Takeaways
- Pergolas, kitchens, and other structures on a patio must be designed and integrated into the concrete slab before the pour, not added afterward with surface-mounted anchors. Post location, footing depth, and load paths all live in the concrete.
- Frost heave in Ontario means a roofed structure needs footings below frost depth, roughly 4 to 5 feet depending on the city. A pergola sitting on a surface-mounted anchor above a shallow slab is a structure that will tilt and crack its roof by year three.
- Rough-ins for gas, electrical, and water have to be set before the concrete cures. Running those utilities under or through the slab, or chasing them later through cured concrete, is either expensive or impossible.
The mistake that costs the most: designing structures after the slab
This is worth saying plainly, because it's the single most common shortcut we see when homeowners bring us plans: someone designed a beautiful pergola, or an outdoor kitchen with gas lines, or a fire feature, and then the concrete contractor shows up with a flat slab and anchors the structure to the surface of what's already cured.
That approach works for small, lightweight features like a freestanding grill or a shade sail on a post that doesn't carry much load. For anything that's a permanent structure (a roofed pergola, a masonry pizza oven, an outdoor kitchen island with gas and water, anything that will see snow load, wind load, or decades of Ontario freeze-thaw cycling), designing it in after the concrete is cured guarantees problems that cost far more to fix than getting it right during the pour would have.
The concrete isn't just a surface. It's the load-bearing foundation. Every structure on it is really embedded in it, whether you admit it or not. A post anchor bolted to the surface sits on concrete that's already shrunk, already been exposed to weather, already full of cracks if there's been any freeze-thaw. The concrete around that anchor is doing structural work it was never designed for, and it's doing it in the worst possible state, as a mature slab with no reinforcement below the anchor point.
Footings for posts: why frost depth matters more than the posts themselves

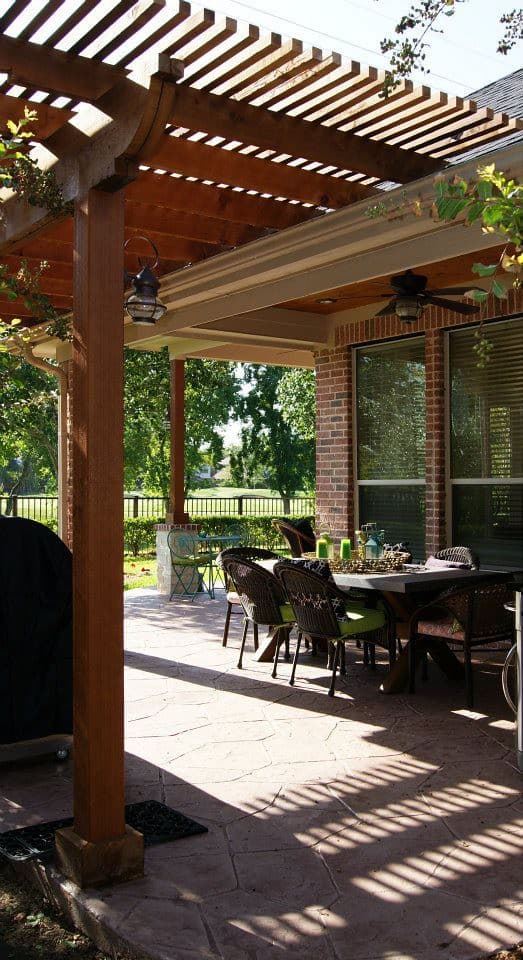

A pergola is a vertical load. The posts carry snow, wind, and the weight of the structure itself, and all that load flows down through the posts into whatever's holding them. In Ontario, that's where frost depth becomes critical.

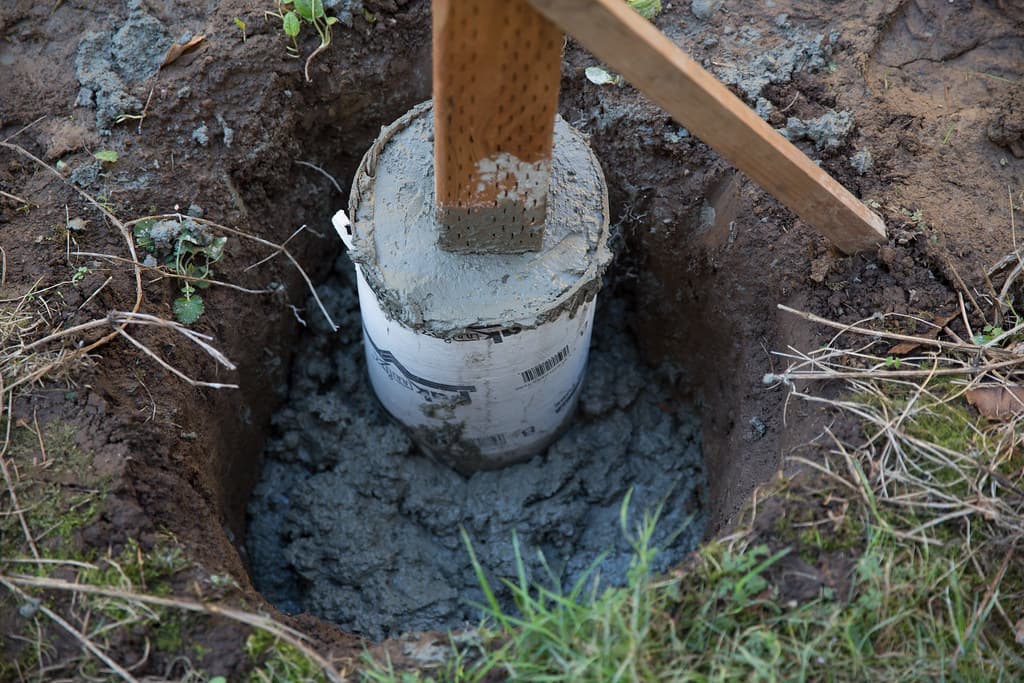

Below about 4 to 5 feet (the depth varies by municipality, but 4 feet is typical for most of our service area), the ground doesn't freeze and thaw every winter. Above that depth, water in the soil freezes and expands, which is called frost heave, and it can lift a shallow footing by an inch or more in a season. Do that for a few winters and the posts tilt, the roof becomes unstable, and connections that were tight start to gap and leak.
If you design a pergola to sit on the concrete slab itself, with the slab at grade and the posts bolted to that surface, you're asking a 4-inch slab to take a frost heave that wants to lift the post. The connection holds, barely, until it doesn't. The right answer is a footing that goes below frost depth, set before the concrete pour, so the load flows down into stable ground and doesn't care what the weather does to the top few feet of soil.
That footing is concrete too, or driven helical anchors in deeper soil, but it's engineered as a separate structure below the patio slab. The patio slab itself can float on the base it was built on, independent of whether there's a pergola post sitting on concrete above it or not.
Thickened slab sections for heavy loads
Patios over concrete in Oakville, Guelph, and Toronto are usually 4 inches thick, which is fine for foot traffic and lighter outdoor furniture. An outdoor kitchen island, a pizza oven, or a pergola with a full roof load is something else entirely. Those are point loads, concentrated forces that press down in one or a few spots instead of spreading across the whole slab.
A 4-inch slab under a masonry pizza oven, which can weigh 1,500 to 3,000 pounds concentrated in a spot two or three feet across, is working much harder than a 4-inch slab under a patio chair. The concrete needs to be thicker where the load lands, or the slab will crack and settle under that point. The concrete industry maintains a separate design standard specifically for slab-on-ground work, distinct from foundation and structural slab codes, precisely because a thin slab designed for distributed foot traffic doesn't behave the same way under a concentrated point load. A heavy fixed feature needs its own thickened section or a separate footing. The engineer's answer is a thickened section: the general patio stays 4 inches, but the area under the kitchen island or the oven footprint gets thickened to 6 or even 8 inches, and that thickness extends down to stable bearing and may include reinforcement specific to the load.
You can't add that after the pour. The slab is cured, uniform, and thin where it needs to be thick. Design these loads in, and they go in cleanly as part of the concrete plan.

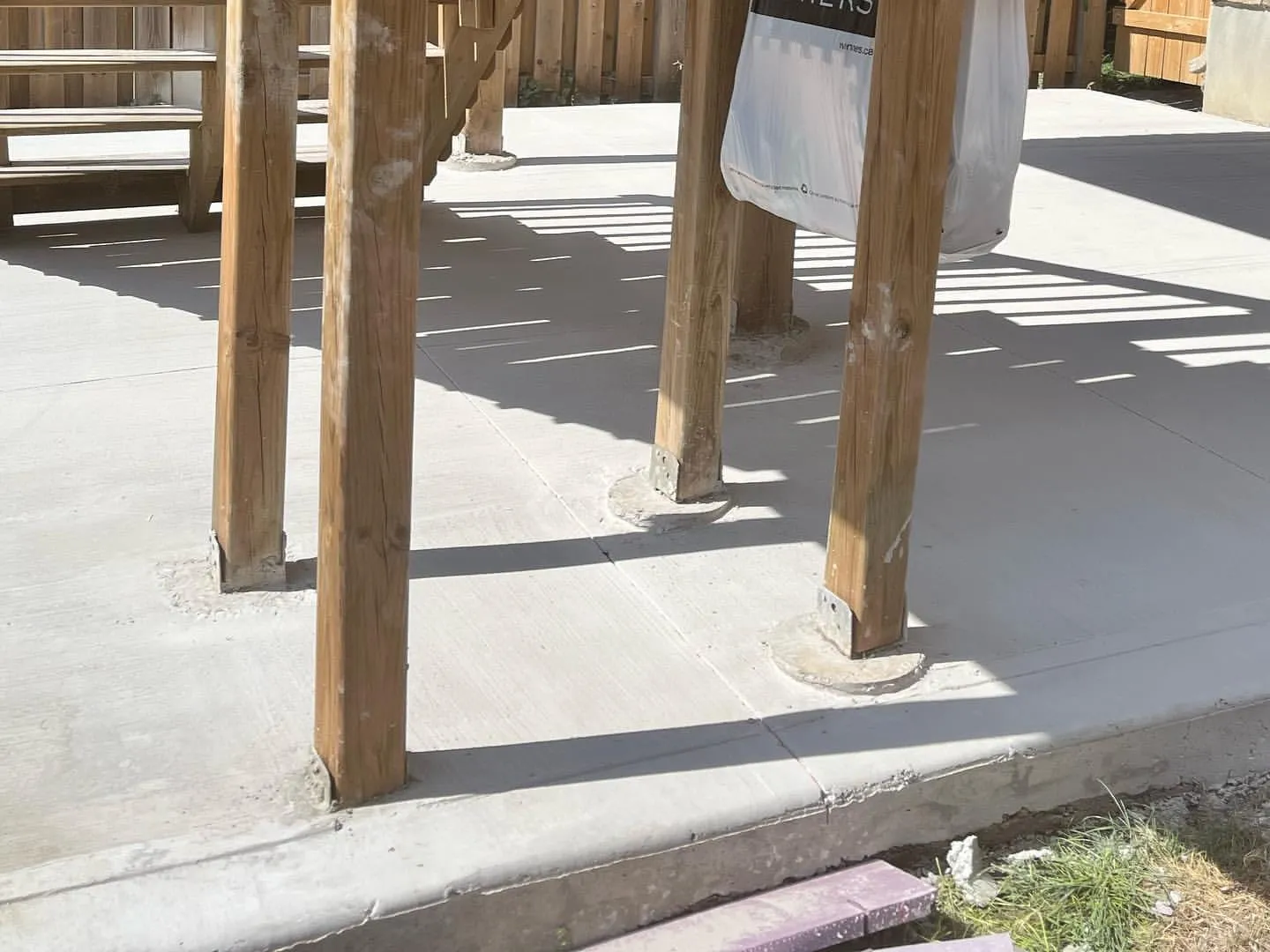

Post anchors: set in wet concrete versus surface-mounted later
There are two fundamentally different ways to anchor a post to a slab, and the timing and the concrete work are completely different.
Set in wet concrete. A post base or anchor bolts are embedded in the concrete while it's still plastic, before it sets. The concrete cures around the anchor, locking it in place, and the post bolts to that embedded base. It's strong, it's done once, and the concrete does the holding. This is the standard for any permanent structure, and it's the method that works with the footing strategy and the frost-depth picture I described above. The anchor is part of the pour, not added after.
Bolted to the cured surface. Drill holes in cured concrete, tap threads or install expansion anchors, bolt the post base down. It's faster to install after the slab is done, but it's weaker because you're holding a post on a surface that has no structural engagement below the bolt holes. The cured concrete around the anchor has no reinforcement there, it's a mature slab that's already full of micro-cracking from freeze-thaw exposure, and the anchor is only as good as the concrete it's drilled into.
For a 100-pound shade sail, surface-bolting is fine. For a roofed structure that's going to see years of freeze-thaw cycling in an Ontario winter, the answer is built-in during the pour.
Gas, electrical, and water rough-ins: the infrastructure that has to go under the slab

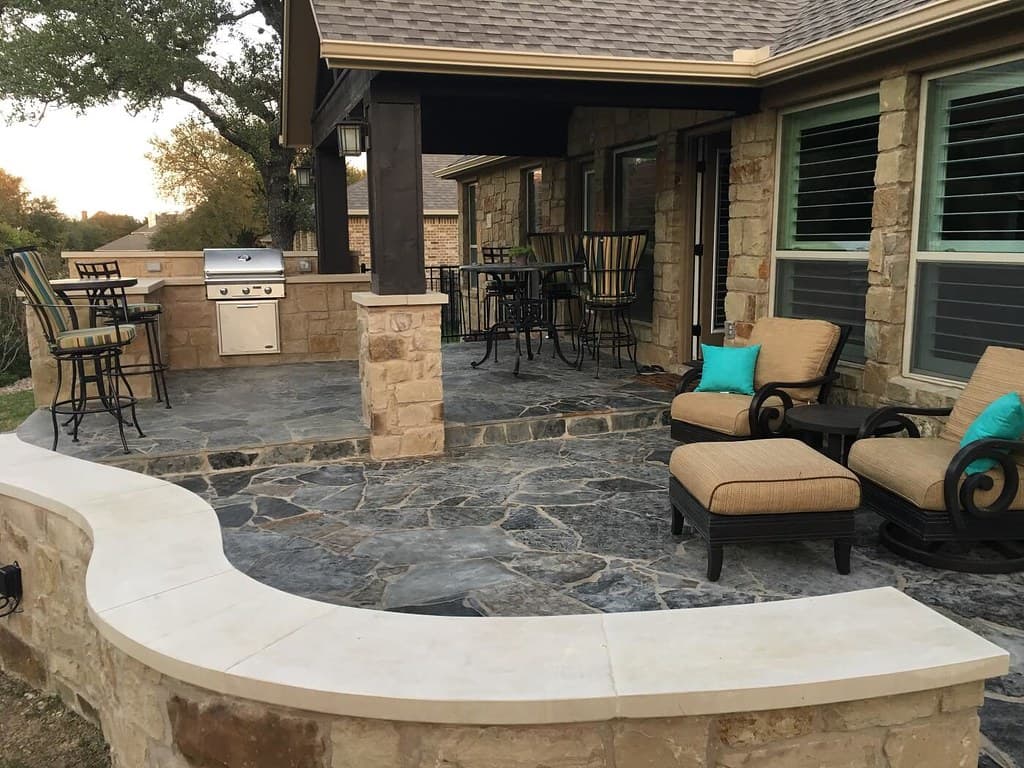

An outdoor kitchen isn't just concrete. It needs gas lines for the burner, electrical for lights and equipment, water for a sink, and drainage for greywater. All of that infrastructure has to get from the house or a main line to the kitchen island somehow.
The slab is in the way. Running those utilities under the concrete, or through embedded conduit, happens before the pour. You cut the trenches, lay the gas line in black iron or the electrical in conduit, set the water line and drain line, and then the concrete goes over the top of all of it. Once it's cured, the utilities are routed, protected, and ready to be tapped from inside the kitchen structure.
Run them after the concrete is cured and you're drilling through a 4-inch slab to chase lines, or you're running them exposed on the surface where they get kicked and damaged, or you're jackhammering a trench in cured concrete, which is expensive and messy and risks damaging the slab itself. In a concrete-first world, you decide where the utilities go and then you pour around them.
Gas specifically carries code and safety implications. In Ontario, gas piping and appliance hookups fall under TSSA's fuels safety program, which certifies gas installers and takes enforcement action against uncertified gas work. A gas line has to be installed by a certified installer and inspected before it's buried. That inspection usually happens after the infrastructure is installed but before it's buried. You can get the inspection done before the pour, with the lines staged and ready, and then pour the slab over tested, approved lines. The sequence matters.
Drainage under roofed areas
A pergola without a roof sheds water across the patio as part of the general slope you built into the slab, sloped away from the house, toward the street or a drain. A roofed pergola or a covered kitchen area changes the drainage picture. The roof collects water from the roof area and sheds it at the edge of the structure. That water lands on the patio, and it has to drain away from there, not pool at the foundation edge or drain toward the house.
If the patio under and around the structure isn't sloped correctly for that concentrated drainage, water pools, freezes, damages the concrete, and directs water toward the foundation. Getting the slope right means designing the drainage before the slab is poured, knowing where the structure will sit and where the water from its roof will land. A standard patio slope away from the house is one thing; a patio with a central roofed structure is a different topography problem.
For a longer look at patio drainage and grading, and why the slope matters as much as what's underneath, see our guide to grading and drainage around a new patio.
Permit thresholds for structures attached to the house
A freestanding pergola or a detached kitchen island on the patio is usually not a permit-triggering structure. A roofed pergola or a kitchen structure that's attached to the house, or that's large enough to be considered an addition, crosses into building permit territory. The size, the load, whether it's attached to the house, and whether it has a roof or walls all change the permit requirement.
That's worth knowing before you design and definitely before you pour the concrete. Under the Building Code Act, most Ontario municipalities require a building permit for construction, additions, and major renovations, and whether an attached roofed structure crosses that line depends on the local building department's read on size, attachment, and use. A freestanding open pergola might not need one. Find out early. Get the sketches to the city, get the answer, and then the concrete plan can account for the structure's official footprint, load rating, and any engineering requirements that come with the permit.
Doing it backward, pouring first and then realizing the structure needs a permit that requires modifications, is the kind of mistake that eats budget.
Sequencing trades and coordination across concrete, framing, and utilities
The order of work matters. Here's what actually has to happen:
- Design the whole system, patio, structures, and utilities, before the concrete crew shows up.
- Mark out the slab footprint, the structure locations, the footing points, and the utility routes.
- Excavate and install the subgrade and base prep.
- Set any deep footings for posts below frost depth.
- Lay out forming, set the utility lines and conduit in their planned routes, embed any post anchors.
- Get the rough-in inspected if required (usually for gas and electrical).
- Pour the concrete.
- Cure the concrete.
- Build the structures (framing, roof, kitchen enclosure) on top of the anchors and around the rough-ins.
If you skip step 5 and try to do it in step 9, you're drilling through cured concrete, chasing utilities, and either doing expensive extra work or changing the structure's location because the concrete isn't in the right place. Building a structure on top of a slab is straightforward. Building it because you have to work around what's already there is much harder.
The bigger picture: why it's cheaper to design than to retrofit
Here's the position worth stating plainly: designing structures into the patio before the pour is not a cost adder, it's a cost saver. The concrete and the base work are the same cost whether or not there's a pergola post sitting on the slab. The difference is that a post set during the pour is stronger and more permanent than one bolted on afterward.
The utility runs (gas, electrical, water) are the same either way. The cost difference is whether they get trenched and buried under the slab or drilled through cured concrete, and the drilled option is more expensive and more risky. An electrical line or gas line buried cleanly during the pour is a known, safe installation. One chased through concrete afterward is a guess, a mess, and potentially a safety problem.
For homeowners planning this kind of patio, the constraint isn't money, it's the calendar. Getting the design right before the pour costs time and planning. It doesn't cost more in concrete. It costs less in aggravation and mistakes fixed on the fly.
If you're planning an outdoor space with structures on a concrete patio, start with the structures, not the slab. Get the architecture and engineering sketches done. Decide where the pergola lives, where the kitchen island sits, where the utilities need to run, and how deep the footings have to go. Then bring those plans to the concrete crew, and let them build the slab and the substructure as one system, not as an afterthought.
For more ideas on what an outdoor concrete space can be, see outdoor concrete in Ontario, which covers all the structures and finishes. If you're working with a tight footprint and need to make the slab space count, check out our small backyard patio ideas.
