Key Takeaways
- Concrete driveways get two different kinds of joints: control joints (cut into the slab itself, so shrinkage cracking happens along a straight, hidden line) and isolation joints (a compressible strip where the driveway meets a garage floor, sidewalk, or foundation, so the two surfaces can move independently).
- The common rule of thumb: control joints every 2 times the slab's thickness in feet, no more than 1.5:1 length-to-width per panel. For a standard 4-inch driveway, that's roughly every 8 feet.
- Skip the joints, space them too far apart, or leave isolation joints out at the garage apron, and the slab still cracks. It just cracks wherever the concrete finds it easiest, not where you planned.
The short answer
A driveway slab is going to crack. That's not a defect, it's what concrete does as it cures and as Ontario's temperature swings between a July afternoon and a January night. Joints don't prevent that movement, they control where it happens. Cut a straight groove into the slab at the right spacing and the crack follows that groove, hidden in the joint line, instead of splitting the panel down the middle where it's visible for the next 20 years.
Homeowners getting quotes in Hamilton, St. Catharines, or Cambridge rarely ask about jointing specifically, they ask about finish and price. But joint spacing and joint type are two of the few things in a driveway pour that are genuinely load-bearing for how the slab looks in year five, not just year one.
Two different jobs, one confusing name
"Expansion joint" gets used loosely to mean any line in a driveway, but there are actually two distinct joints doing different work, and mixing them up is where problems start.

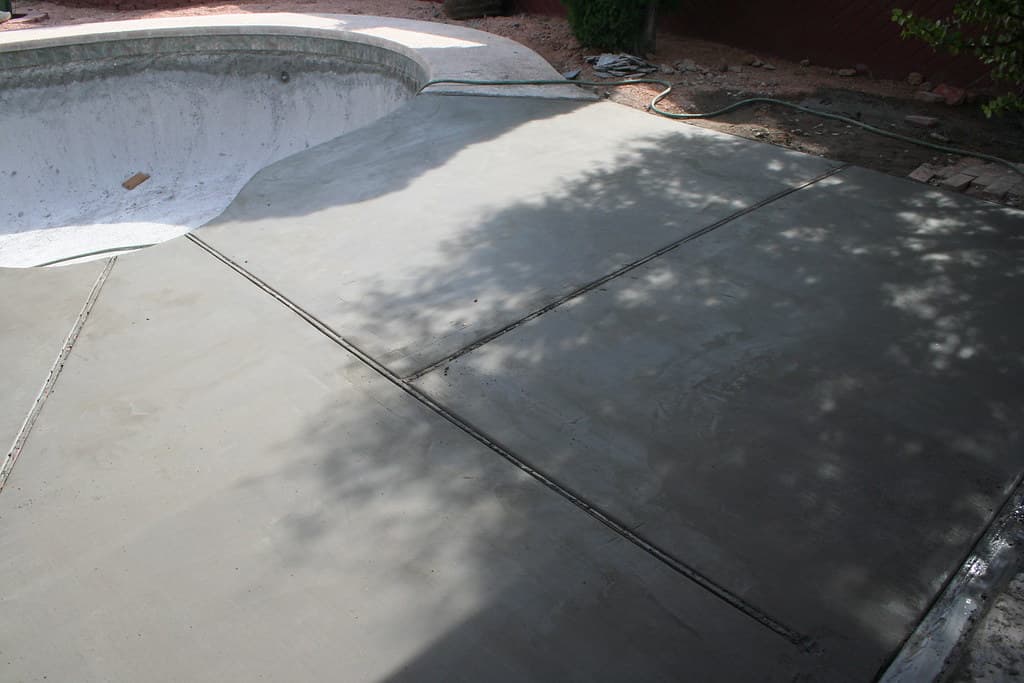

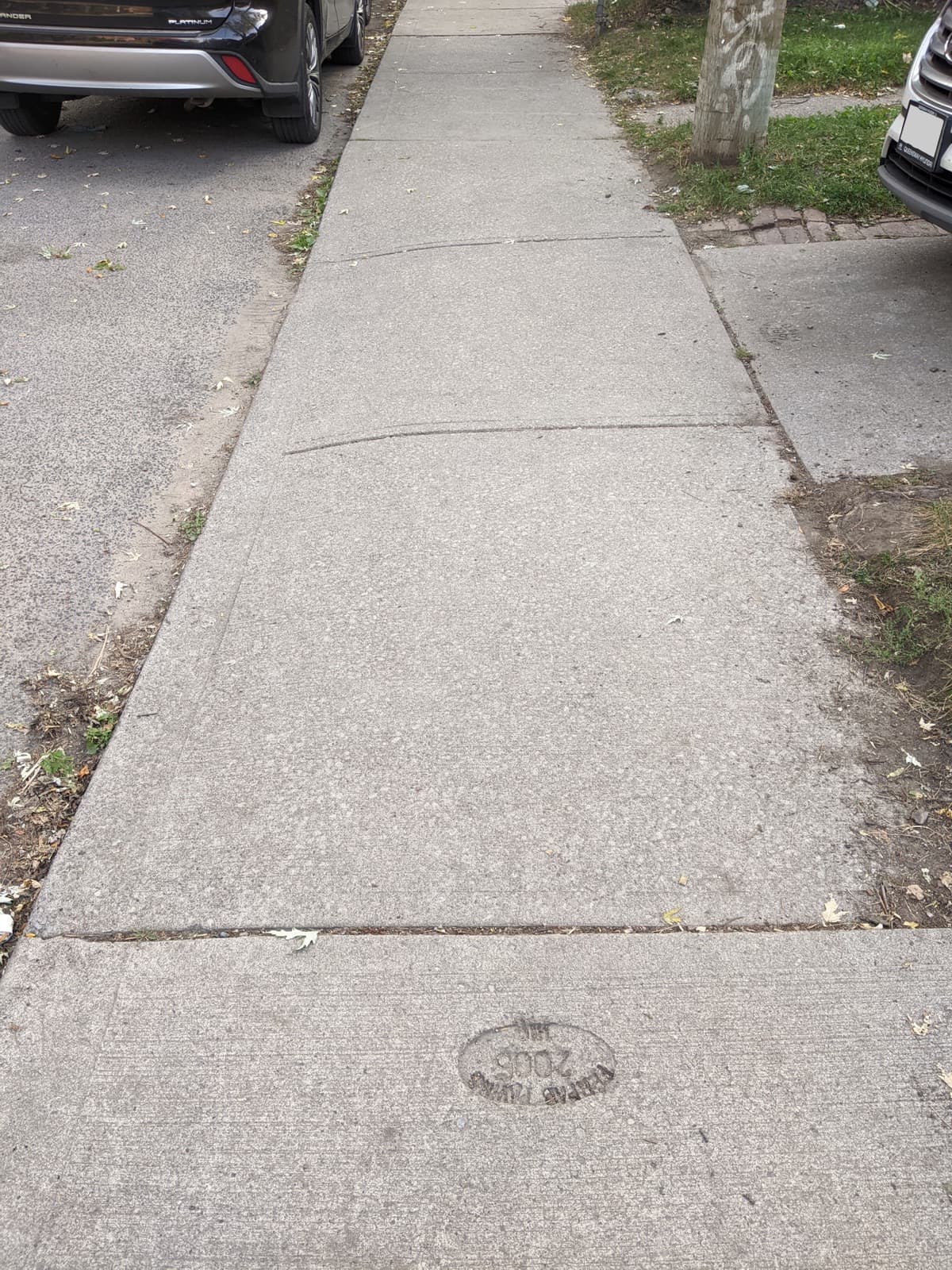

Control joints (also called contraction joints) are cut or tooled into the slab itself while the concrete is still workable, or saw-cut a few hours after the pour. They don't separate anything, they weaken the slab along a straight line on purpose, so that when the concrete shrinks as it cures, and later contracts in cold weather, it cracks along that groove instead of at a random point in the panel.
Isolation joints are what people usually mean when they say "expansion joint." These are full-depth gaps, filled with a compressible material, placed wherever the driveway meets something that won't move with it: a garage floor slab, a sidewalk, a foundation wall, a light post base. The filler lets each side expand, contract, or settle on its own without transferring stress into the other.
The difference matters because they solve different failure modes. Skip control joints and you get random cracking across the field of the driveway. Skip isolation joints at the garage apron and you get a crack right at that seam, often the first place a driveway visibly fails.
Why the joints are there at all
Concrete driveways in Ontario move for two separate reasons, and a joint plan has to account for both.
The first is curing shrinkage. Fresh concrete loses water as it cures, and the slab physically shrinks by a small amount as that happens, in the first weeks after the pour. That shrinkage is unavoidable, and it's the main reason a driveway needs control joints even in a climate with no winter at all.
The second is thermal and moisture cycling, and this is where Ontario adds a layer other regions don't deal with as aggressively. A driveway slab expands slightly in summer heat and contracts in winter cold, and water that gets into the concrete's pores freezes and expands through the winter. Neither of those movements is dramatic on its own, but repeated over years, they're what eventually finds any weak point in the slab, including a joint that was cut too shallow, spaced too far apart, or left out entirely where the driveway meets a fixed structure.

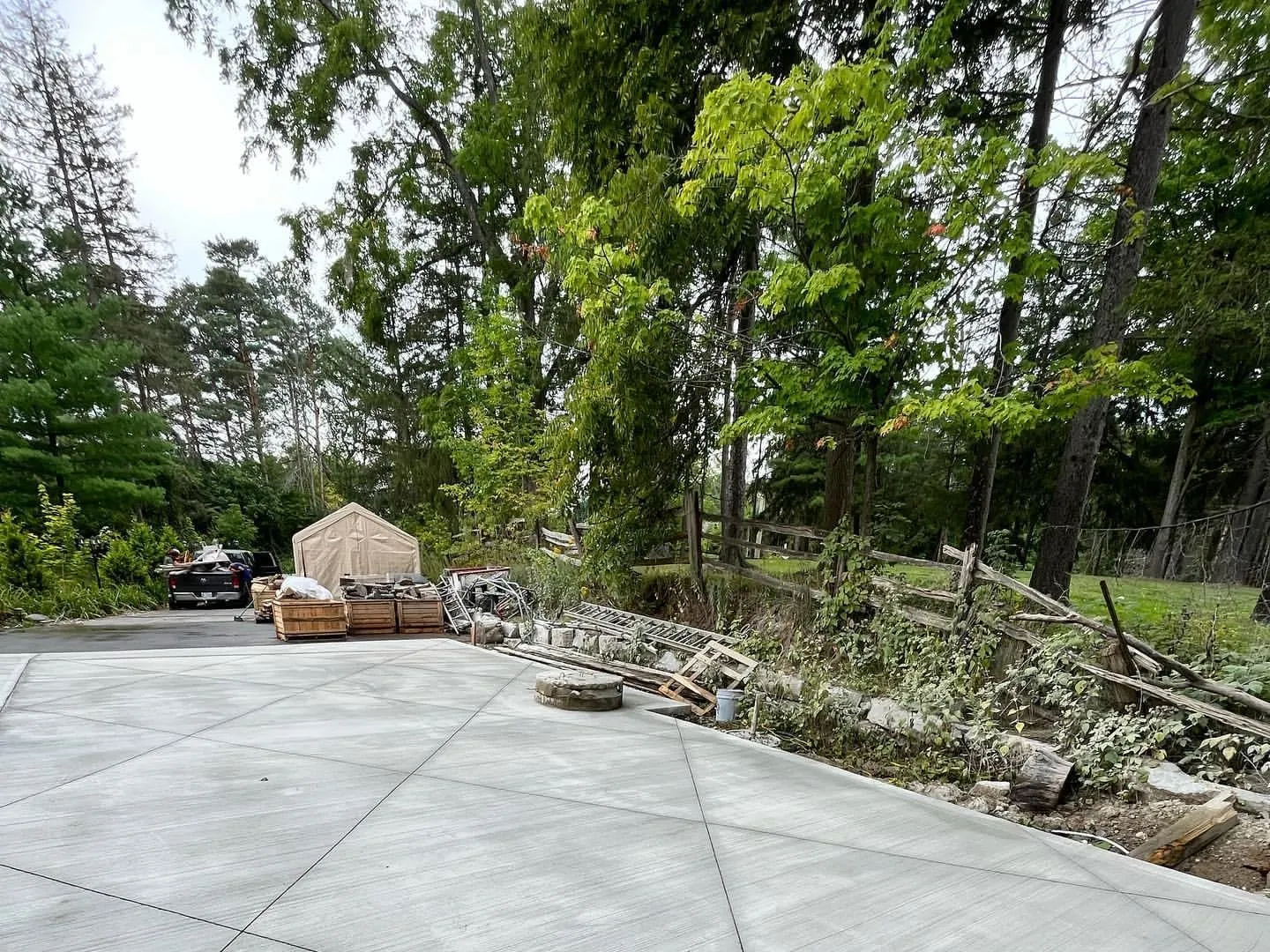

How far apart control joints should actually be
There's a real, testable rule here, not a guess. The Michigan Concrete Association's driveway and sidewalk placement guidelines specify control joints installed in both directions at intervals not exceeding two times the slab thickness, expressed in feet, with panels kept as close to square as possible and a length-to-width ratio no greater than 1.5 to 1. For a standard 4-inch residential driveway, that works out to control joints roughly every 8 feet. The same guidelines call for a minimum joint depth of one-quarter the slab thickness, so a 4-inch driveway needs joints cut at least 1 inch deep to actually create the weakened plane that makes the joint do its job.
Two things go wrong when a contractor skips this. Joints spaced too far apart leave panels big enough that the concrete cracks somewhere in the middle instead of at the joint, since the joint stopped being the path of least resistance. Joints cut too shallow don't weaken the slab enough to guide the crack at all, so you end up with a decorative groove and an unrelated crack running diagonally across the same panel.
Isolation joints: where your driveway meets everything else

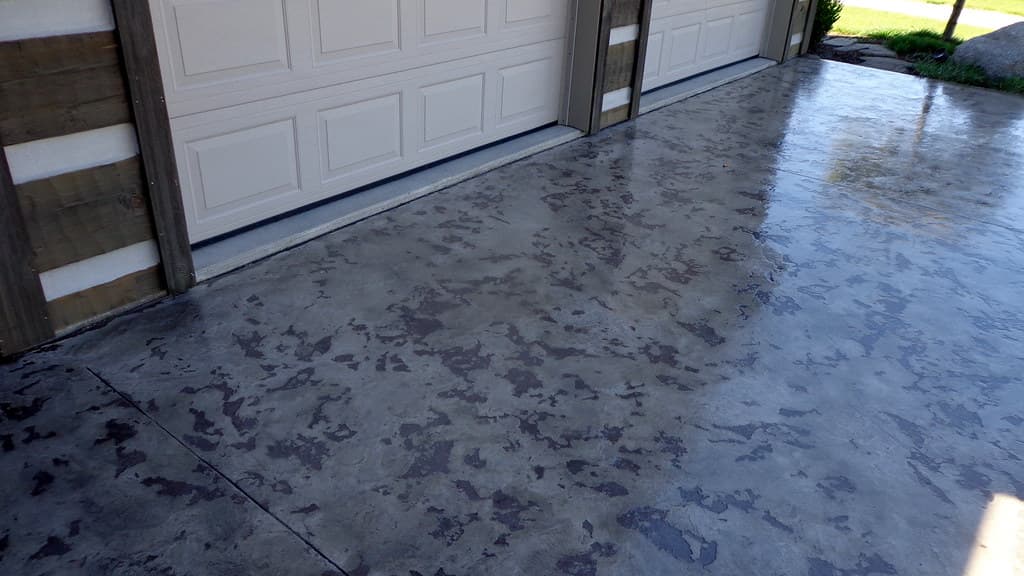

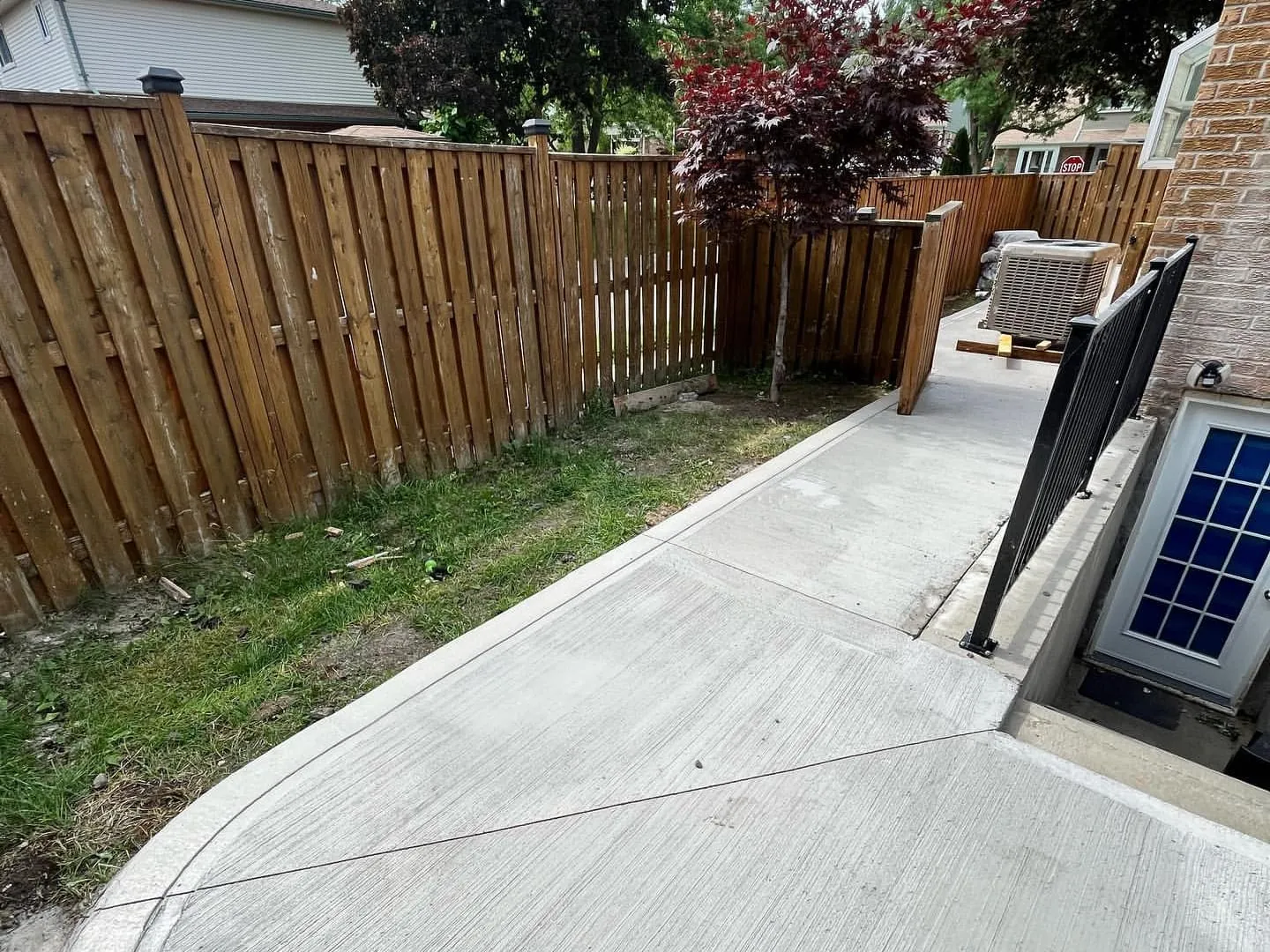

Every point where a new driveway slab touches an existing structure needs an isolation joint, not a control joint. That includes the garage floor, an adjoining sidewalk or walkway, a porch foundation, and any post or column base sitting inside the driveway's footprint. Per the same Michigan Concrete Association guidelines, isolation joints are installed at points of restraint specifically to separate freshly placed concrete from fixed objects, existing structures, walls, and foundations, and they run the full depth of the slab, not a shallow tooled groove like a control joint.
The material doing the work is a compressible filler strip, commonly asphalt-impregnated fiberboard meeting ASTM D1751, the standard specification for preformed expansion joint filler used in concrete paving, set into the gap before the pour. It lets the driveway slab and the garage floor move independently through a full Ontario freeze-thaw cycle instead of pushing against each other. Skip it, or let it degrade over time without resealing, and the crack that shows up at that seam is one of the more common failure points homeowners see, often mistaken for a foundation problem when it's really a missing or failed isolation joint.
Joint sealant, salt, and Ontario winters
The joint itself isn't finished once it's cut or filled. Water and de-icing salt both find their way into open joints faster than into the surrounding slab, and that matters more here than in a climate that doesn't see months of salted, freeze-thaw winters. NIST research published in Cement and Concrete Composites found that calcium chloride de-icer reacting with cement paste can form calcium oxychloride, an expansive compound that damages concrete at above-freezing temperatures once concentrations pass roughly 11% by mass. Joints, where de-icer runoff naturally pools and lingers longer than it does on a sloped, broom-finished field, are one of the more exposed spots for that reaction. A sealed joint sheds that water and salt instead of holding it against bare concrete edges all winter.
Freeze-thaw damage in general, not just at joints, is the same mechanism discussed in our guide to stamped vs. exposed-aggregate finishes: water in the concrete's pores freezes, expands, and over enough cycles causes surface spalling. Joint sealant is a smaller, cheaper piece of that same defense, worth checking and redoing every few years rather than only thinking about resealing the whole driveway surface.
What this means when you're getting quotes
Most of this is invisible once the driveway is finished, which is exactly why it's worth asking about before the pour rather than after a crack shows up. A few practical things worth confirming with whoever pours your driveway:
- Joint spacing, not just "we'll add joints." Ask for the actual interval relative to your slab's thickness, not a number picked to match the size of the saw blade on hand.
- Isolation joints at every fixed point, including the garage apron, any walkway tie-in, and steps, not just around the perimeter of the whole driveway.
- Saw-cut timing, if that's the method being used. The cutting window typically runs 8 to 12 hours after placement; cut too early and the edges ravel, cut too late and shrinkage cracking has already started ahead of the saw.
None of this changes the cost of the driveway meaningfully. It's a planning decision, not a material upgrade, which is part of why it's worth confirming rather than assuming.
Frequently asked questions
Are expansion joints and control joints the same thing?
Not technically. Control joints are shallow grooves cut into the slab to guide shrinkage cracking along a straight line. Isolation joints, which is what "expansion joint" usually refers to in everyday use, are full-depth gaps filled with a compressible material where the driveway meets a garage floor, sidewalk, or foundation.
How far apart should joints be on a residential driveway?
For a standard 4-inch driveway, roughly every 8 feet in both directions, following the common rule of spacing control joints at no more than twice the slab thickness expressed in feet. Thicker driveways, like a 5- or 6-inch slab poured for heavier vehicle loads, can space joints slightly further apart.
What happens if a driveway doesn't have enough joints?
The slab still cracks, since shrinkage and thermal movement happen regardless of jointing. Without enough control joints, or with panels spaced too far apart, the crack shows up randomly across the field of the driveway instead of hidden inside a joint line.
Do joints need to be resealed?
Yes, on the same rough timeline as resealing the driveway surface itself, every few years. An open or degraded joint lets water and de-icing salt sit against bare concrete edges through the winter, which is more exposed to freeze-thaw and salt damage than a sealed joint.
Can a crack next to a garage door be fixed, or does the driveway need replacing?
That crack is often a failed or missing isolation joint at the garage apron, not a structural problem with the driveway itself. It's usually repairable by cutting out the damaged edge and installing a proper isolation joint, rather than a sign the whole slab needs replacing.
Bottom line
Every concrete driveway cracks eventually. Joints don't stop that, they decide where it happens. A driveway with the right control joint spacing, real isolation joints at every fixed point, and sealant that gets renewed on schedule tends to age like a series of clean panel lines. One without it tends to age like a spiderweb. It's one of the cheapest decisions in the whole project, made before the concrete truck even shows up, and it's worth confirming directly rather than trusting it got handled. For more on how the rest of a driveway build holds up through an Ontario winter, our complete guide to concrete driveways in Ontario covers base prep, cure time, and sealing in full.
